Cost Model & Index Selection

Index types

PyCanopy chooses among four spatial access paths:

Index Best for
KD-tree Point kNN and range queries over clustered point data
R-tree Polygon queries and bounding-box searches
Grid Range and distance queries over uniformly distributed points
Brute force Small datasets or queries expected to scan or return much of the dataset

Index mode

index_mode is set on SpatialFrame construction and can later be changed through sf.engine.set_index_mode(...).

Mode Behavior
auto (default) Build index only when the cost model says it beats a scan
eager Use the rule-selected access path without comparing its estimated cost with a scan
none Always scan brute-force

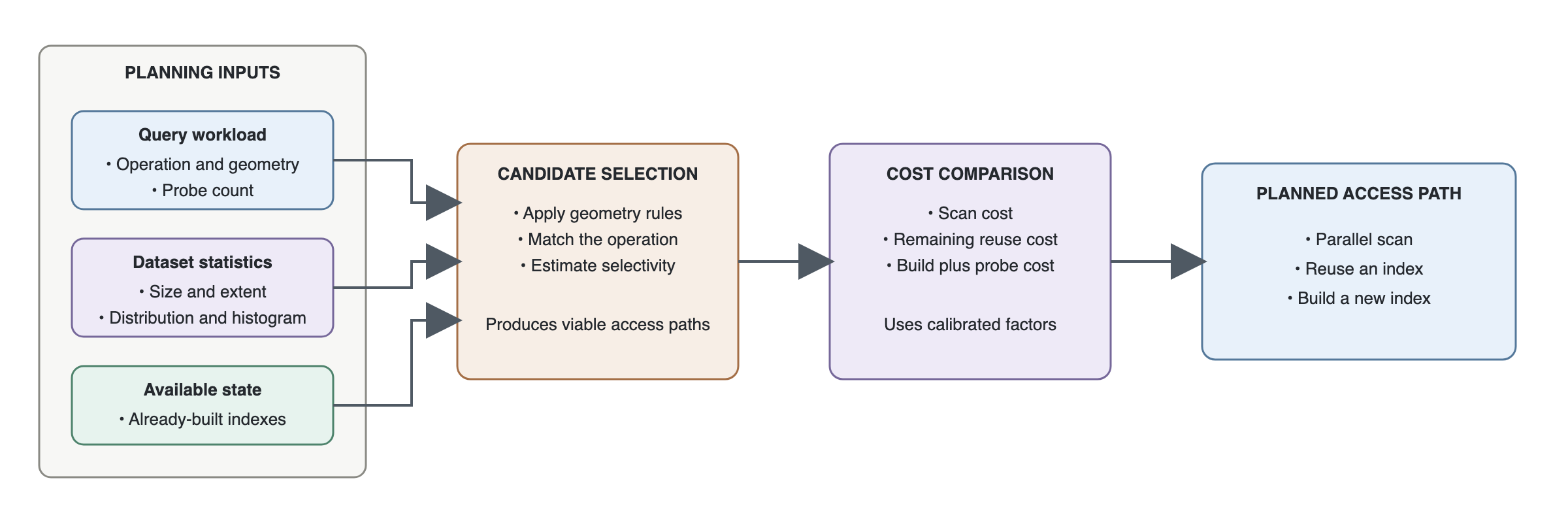

Candidate index selection

When the engine considers building a new index, select_index applies these rules to pick the candidate type:

flowchart TD
    A[Query arrives] --> B{N < 500\nor sel > 50%?}
    B -- yes --> BF[Brute force]
    B -- no --> C{kNN with\nk/N > 10%?}
    C -- yes --> BF
    C -- no --> D{Polygon\ndataset?}
    D -- yes --> RT[R-tree]
    D -- no --> E{Range query\nand uniform?}
    E -- yes --> GR[Grid]
    E -- no --> KD[KD-tree]

Point distribution is classified from variation in grid-cell counts. A separate 32×32 histogram estimates range selectivity; polygon histograms count exterior-ring centroids.

In auto mode, cached indexes are also candidates and their build cost is already paid.

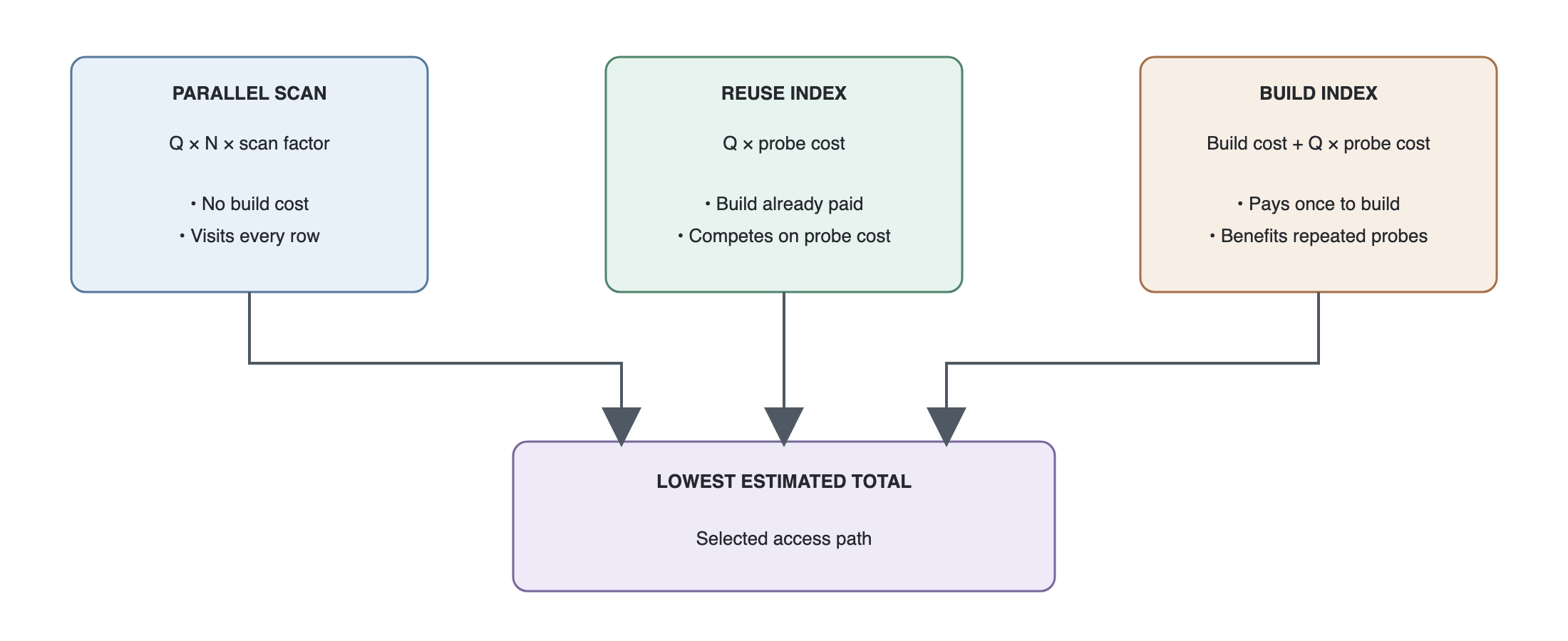

Cost gate

When index_mode="auto", the planner compares the applicable costs and picks the minimum (\(Q\) = probe count, \(N\) = dataset size):

\[ \text{winner} = \arg\min \begin{cases} \text{Cost}_{\text{probe}}(\text{each built index}) & \text{build already paid} \\ \text{Cost}_{\text{build}} + \text{Cost}_{\text{probe}}(\text{best new index}) \\ \text{Cost}_{\text{probe}}(\text{brute force}) \end{cases} \]

Selectivity (fraction of \(N\) expected to match):

\[ \text{sel} = \begin{cases} \text{hist}(\text{bbox}) / N & \text{range query (32×32 histogram)} \\ k / N & \text{kNN} \\ 1 / N & \text{contains} \end{cases} \]

Probe cost (\(Q\) warm queries against a built index):

\[ \text{Cost}_{\text{probe}} = Q \times \begin{cases} N \cdot c_{\text{scan}} & \text{brute force} \\ (\log_2 N + \text{sel} \cdot N) \cdot c_{\text{tree}} & \text{KD-tree or R-tree} \\ \text{sel} \cdot N \cdot c_{\text{grid}} & \text{grid} \end{cases} \]

Build cost (paid once and compared with the probe cost for all \(Q\) queries):

\[ \text{Cost}_{\text{build}} = \begin{cases} 0 & \text{brute force} \\ N \cdot c_{\text{build}} & \text{grid} \\ N \log_2 N \cdot c_{\text{build}} & \text{KD-tree or R-tree} \end{cases} \]

Calibration

The formulas above use generic names for readability. The operation-specific constants in src/planner/calibration.rs can be recalibrated with:

uv run python -m bench.ops

# Optional timing repetitions and random seed
uv run python -m bench.ops --runs 5 --seed 42

The suite normalizes timings across point and polygon dataset sizes and reports the median ratio. Use a release build when calibrating for target hardware.
